ControHeat® Bolt-On Jackets for Valves, Pumps and Process Equipment

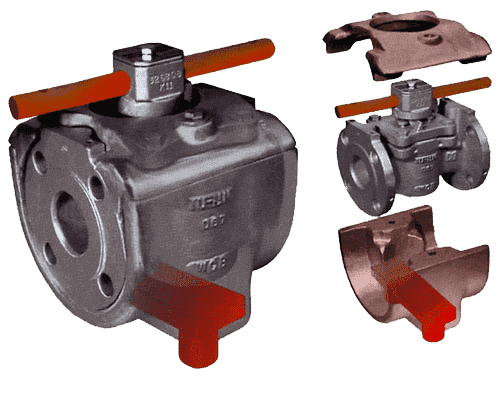

ControHeat is CSI’s engineered bolt-on jacket system developed to deliver uniform conductive heat transfer to valves, pumps, meters, fittings, flanges and other process equipment. Contoured cast aluminium jackets combined with a pressure-rated insert provide accurate thermal control without altering the component pressure boundary.

  • Design: Custom-cast aluminium jackets envelope the component with heat; high conductivity aluminum ensures a uniform jacket temperature and heat transfer compound ensure excellent thermal contact.
  • Heating medium: Compatible with steam, hot oil, glycol, and other thermal fluids; electric versions are also available.
  • Applications: All processes including liquids, gases, slurries, and solids.
  • Performance: Bolt-on installation with no welding required; jackets are removable for inspection and reuse.
  • Installation: Bolt-on installation with no welding required; jackets are removable for inspection and reuse.
ControHeat product
Benefits
Standard Features
Reduce long lead times icon
Reduce long lead times Order a standard valve and a CSI ControHeat at the same time for the fastest possible lead time.
High compatibility materials icon
High compatibility materials Cast copper-free aluminum (ASTM B179 / A356) for thermal conductivity and durability.
Cost effective icon
Cost effective Lower installed lifecycle cost versus welded jacket alternatives and complex tracing systems.
Robust Pressure Chamber icon
Robust Pressure Chamber Pressure insert fabricated from ASME SA-178 Grade A boiler tube; stainless steel options for aggressive services.
Easy to install icon
Easy to install & maintain Bolt-on installation avoids welding damage and enables quick removal for service or valve replacement.
Pattern availability icon
Pattern availability Thousands of component patterns in stock; digital scanning supports custom geometries.
Reusable icon
Reusable Jackets are removable and reusable, improving asset management during plant turnarounds.
Accessories icon
Accessories Soft pack insulation blankets, heating fluid jump-overs, and other components to integrate with the heating fluid supply.

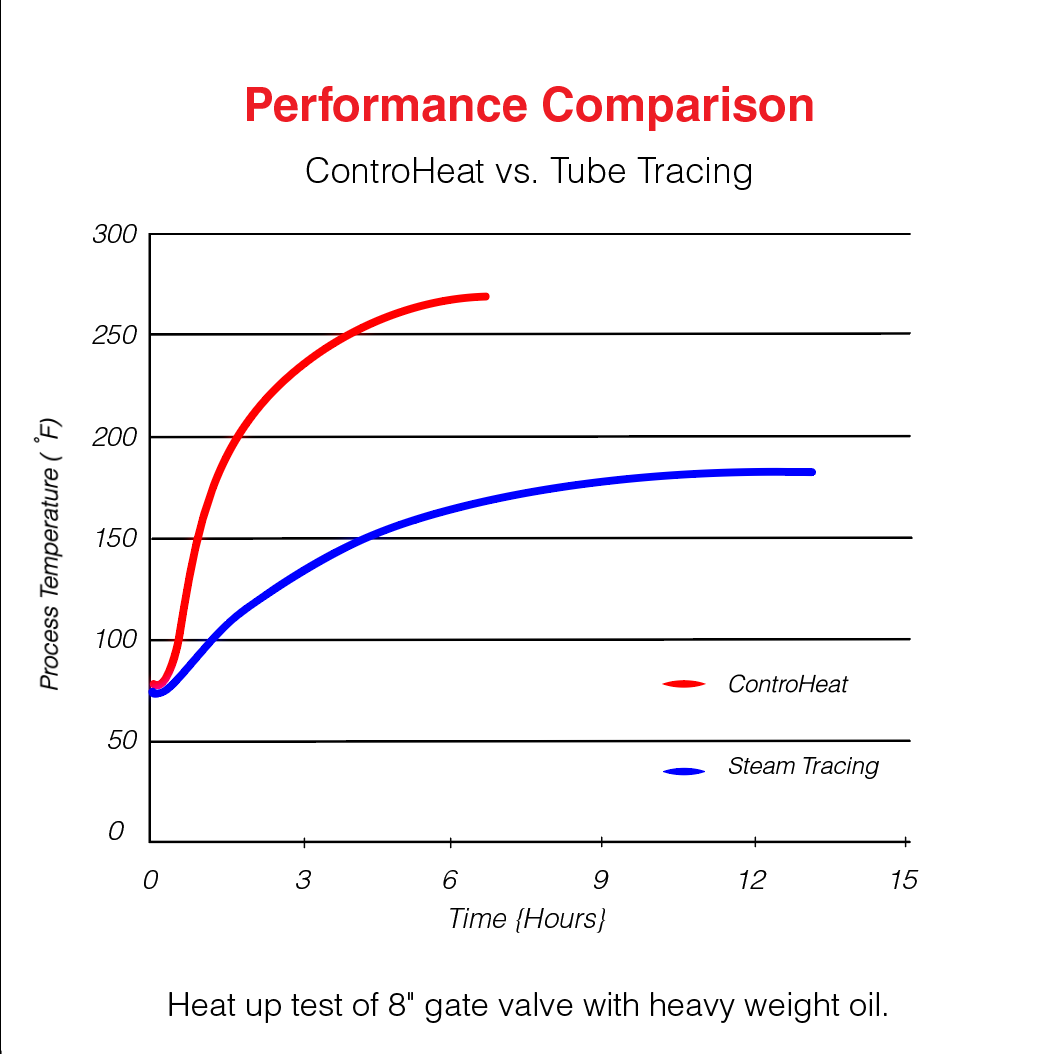

ControHeat Vs. Tube Tracing

ControHeats envelop the component while tube tracing supplies line-contact heat. The engineered jacket approach improves temperature uniformity and reduces operational risk.

  • Uniform heating: Full-surface conduction minimizes temperature gradients and cold spots, resulting in a more consistent wall temperature than localized heating methods.
  • Predictable thermal performance: Conductive heat transfer provides steady, repeatable heating behavior, simplifying temperature control and reducing sensitivity to trace routing or contact quality.
  • Reduced localized overheating: Distributed heat input lowers the risk of hot spots commonly associated with electric heat tracing, helping protect product quality and component integrity.
  • Responsive heat-up and recovery: Direct conduction into the component mass enables efficient heat transfer for start-up and temperature recovery after process upsets.
  • Design flexibility: Custom-fit jackets accommodate a wide range of valve sizes, geometries, and assemblies, including complex or irregular components.

Why ControHeat Has Fully Replaced Jacketed Valves

ControHeat is widely accepted as a replacement for fabricated jacketed valves because it reduces weld-related failure modes, shortens delivery time and lowers lifecycle cost while maintaining consistent thermal performance on complex geometries.

Technical Advantages

  • No valve modification: preserves valve warranty and avoids heat-affected zone damage from welding.

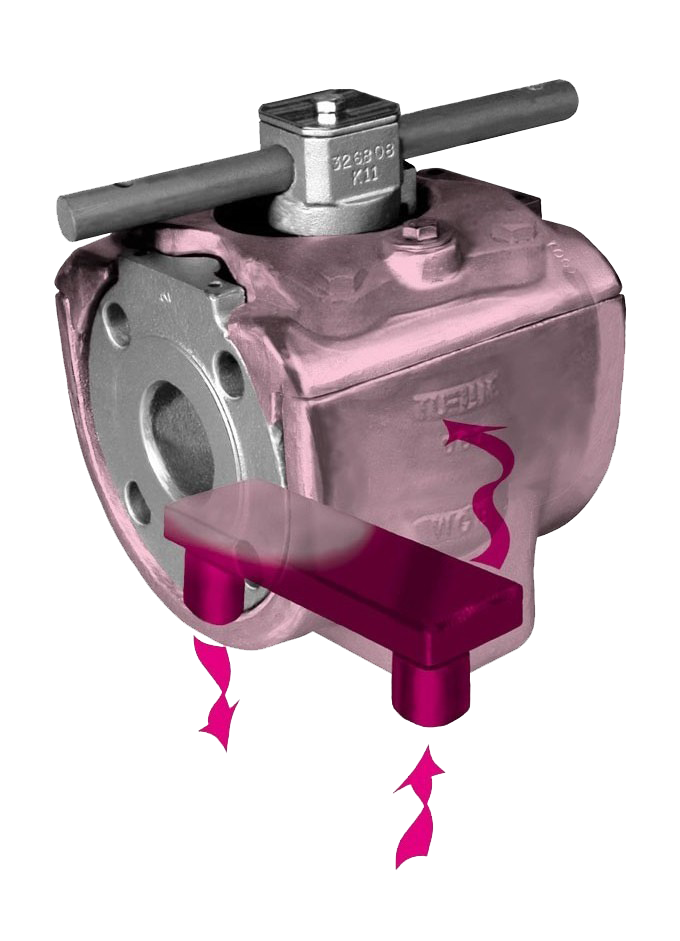

  • Superior heat transfer: custom-fit oven-like enclosures ensure even heating on bonnets, stems and flanges.
  • Easy installation & maintenance: bolt-on, reusable jackets reduce downtime and lifecycle costs.
  • Shorter lead times: take advantage of the shorter lead time for standard valves.

Commercial Advantages

  • Lower total cost: Typical savings of 20–30% vs fabricated jackets due to no welding, reduced labor and reusable design.
  • Reliability: fewer failures, less downtime and proven long-term performance in demanding services.
  • Industry acceptance: trusted by process plants worldwide and widely adopted as a replacement for welded jackets.

Frequently Asked Questions

How is ControHeat different from tube tracing?
ControHeat provides engineered full-surface conduction via contoured aluminium jackets and heat transfer compound for maximum contact area. Tube tracing provides line-contact heat that can create uneven temperature profiles and cold spots on irregular shapes.
Does ControHeat require valve modification or welding?
No. ControHeat is bolt-on and non-intrusive. No welding or valve body penetration is required, preserving component metallurgy and manufacturer warranty.
What materials and pressure specification are standard?
Standard jackets are cast copper-free aluminium (ASTM B179 / A356) and pressure inserts are typically ASME SA-178 Grade A boiler tube. Stainless steel inserts are available for aggressive services. Design pressure follows applicable ASME and project specifications.

RELATED INFORMATION

FEATURES

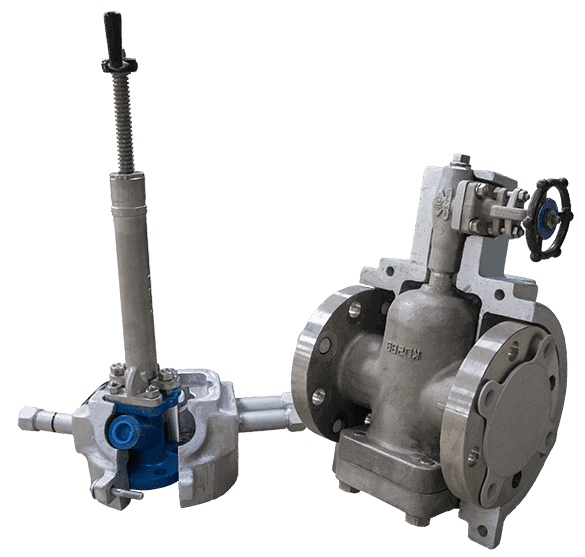

Jacketing Solution for Heating Valves, Instrumentation, Pumps

Standard Features:

  • ControHeat® jacket body is cast from copper-free aluminum (ASTM B179 Grade A 356).
  • Pressure containing insert fabricated from carbon steel (ASME rated SA-178 Grade A Boiler Tube). S/S optional.
  • ControHeat® jackets are cast to “Fit Like a Glove” for specific process components.
  • Pressure and temperature ratings up to 600psig @ 750°F.
  • Thousands of ControHeat® patterns already in CSI inventory.
  • Digital component scanning available to simplify logistics of creating ControHeat® pattern, when required.
  • Optional Accessories Include ControCover Insulation Blankets and Flexible Pre-Insulated Jump-Over Hoses.
BENEFITS

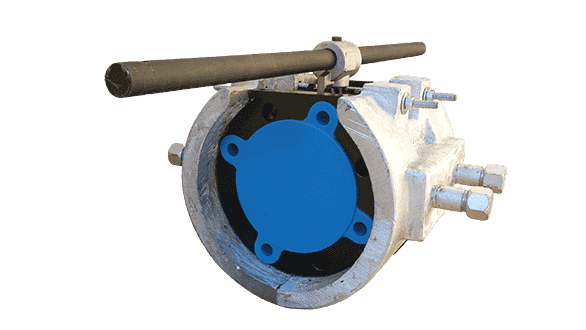

Industrial jacketing System
  • Reduces Long Lead Times
    Eliminates long lead time for fabricated jackets and field guess work when using tube tracing.
  • Cost Effective
    Most economical option when considering total installed lifetime costs and higher cost alternatives.
  • Complete Heating
    Provides evenly distributed heating across entire component.
  • Easy to Install and Maintain
    Eliminates the need for special flanges and potential component damage from welding. Quick and easy removal for access to process component compared to alternatives.
  • Reduced Operational Risk
    Removes possibility of cross contamination (process heating media)
